EINHELL – TC-AC 190/24/8, Air Compressor (CORDED)

Features & Benefits

Oil lubrication contributes to long life
The 24l tank has sufficient air reserves
Applications up to 8 bar can be set using the pressure regulator

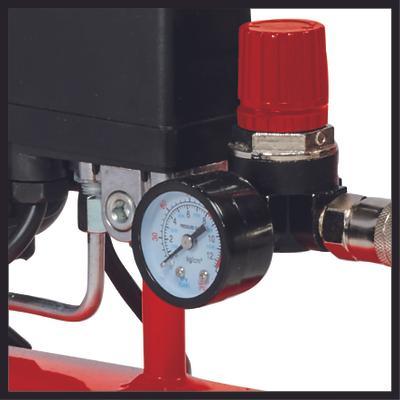

Pressure gauge & quick-release coupling for regulated pressure
Rubber wheels and holding bar for an easy transport
Vibration-damped foot for standing securely
10 years warranty against perforation corrosion of the tank
Non-return valve, safety valve
The drainage screw enables user-friendly maintenance

Technical Data

– Mains supply 220-240 V | 50 Hz
– Max. engine power (S2 | S2time) 1500 W (2 PS) | 15 min
– Engine speed 2850 min^-1
– Pump speed 2850 min^-1
– Suction capacity 165 L/min
– Output power at 0 bar 110 L/min
– Output power at 4 bar 75 L/min
– Output power at 7 bar 55 L/min
– Max. operating pressure 8 bar
– Tank volume 24 L
– Number of cylinders 1 Pieces
– Sound pressure level; Lpa 75 dB (A)
– Sound power level; Lwa 97 dB (A)

Logistic Data

– Product weight 20.5 kg
– Gross weight single packaging 21.5 kg
– Dimensions single packaging 565 x 250 x 565 mm
– Pieces per export carton 1 Pieces
– Gross weight export carton 21.2 kg
– Dimensions export carton 565 x 250 x 565 mm
– Container quantity (20″/40″/40″HC) 360 | 720
