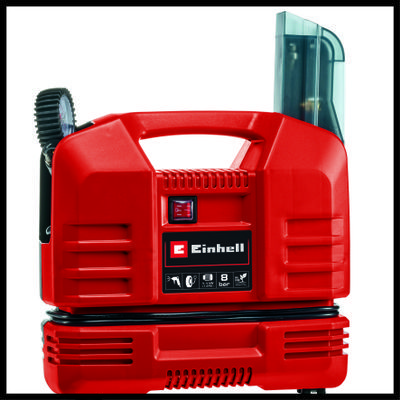

EINHELL – TC-AC 190 OF Set, Portable Compressor (CORDED)

Features & Benefits

Oil free, service free pump for little maintenance
Light, ergonomic and compact design
Enables easy transport and space-saving storage
For many applications up to 8 bar
3 m compressed air hose with quick-release coupling
Integrated storage compartment for air hose & blow-out gun
Additional integrated storage box for adapters
Cable winding provided directly on the housing

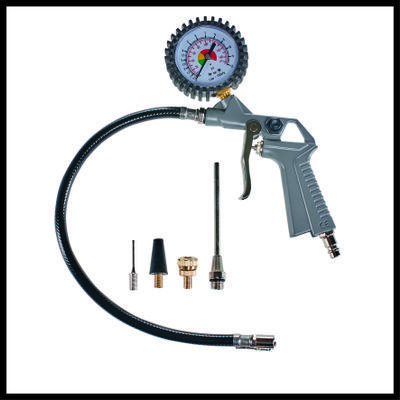

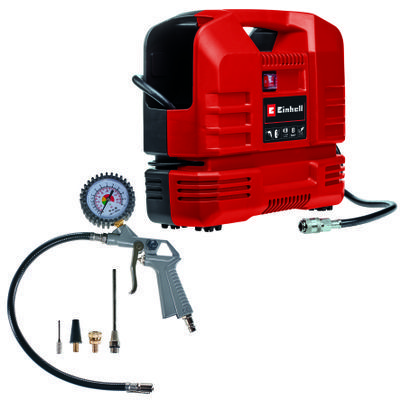

Incl. Blow-out needle, tire pressure gauge & 3-piece adapter

Technical Data

– Mains supply 220-240 V | 50 Hz
– Max. engine power (S3 | S3%) 1100 W (1.5 PS) | 15 %
– Engine speed 15000 min^-1
– Pump speed 3750 min^-1
– Suction capacity 190 L/min
– Output power at 0 bar 165 L/min
– Output power at 4 bar 83 L/min
– Output power at 7 bar 55 L/min
– Max. operating pressure 8 bar
– Number of cylinders 1 Pieces
– Sound pressure level; Lpa 74 dB (A)
– Sound power level; Lwa 97 dB (A)

Logistic Data

– Product weight (kg) 5
– Gross weight (kg) 6
– Dimensions single packaging 417 x 172 x 350 mm
– Pieces per export carton 2 Pieces
– Gross weight of export carton 12.5 kg
– Dimensions export carton 415 x 370 x 370 mm
– Container quantity (20″/40″/40″HC) 960 | 1992 | 2324
