Features & Benefits

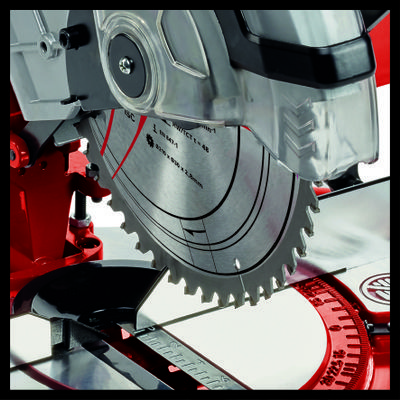

High-quality HW-saw blade for perfect cuts
The work table is made of light and stable alu die-cast

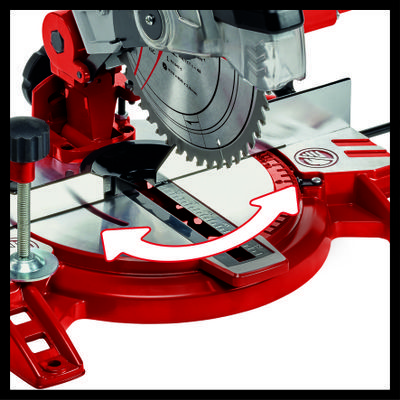

Turntable with accurate locking positions for all common angles

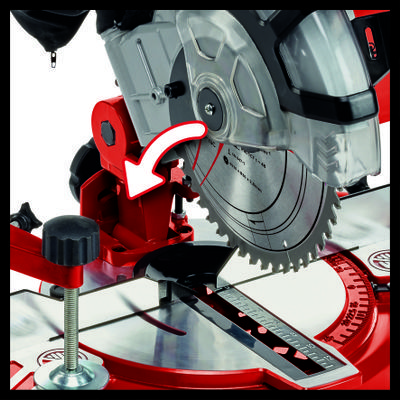

The saw head is infinitely up to 45° tiltable to the left

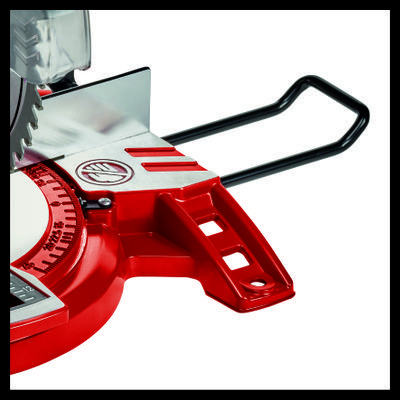

Workpiece supports on both sides for long workpieces

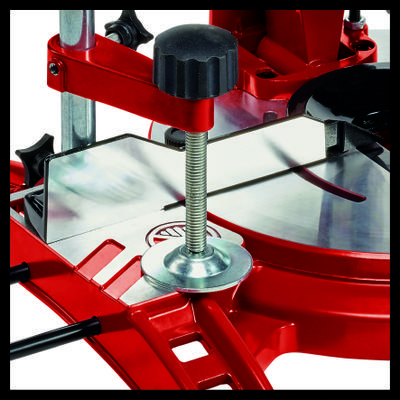

Clamping device for holding the workpiece securely in position

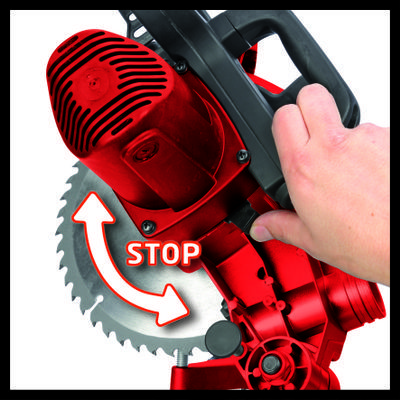

Spindle lock for an easy and fast blade change

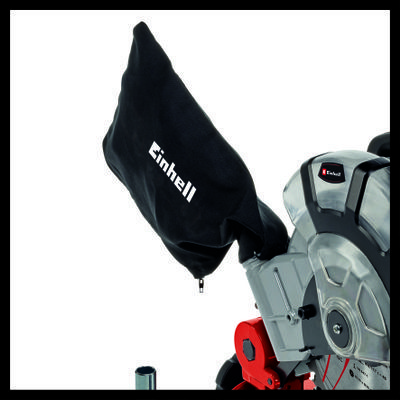

Includes sawdust bag

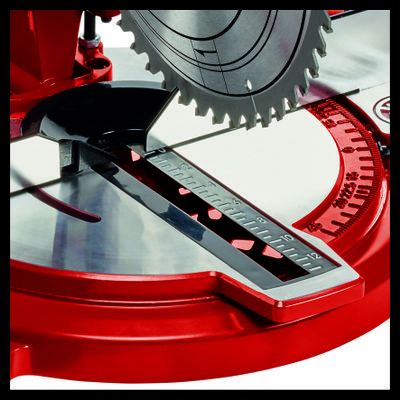

Well readable angle scales for the mitre- and angle-cuts

Technical Data

– Mains supply 220-240 V | 50 Hz
– Power 1400 W
– Max. power (S6 | S6%) 1600 W | 40 %
– Idle speed 5000 min^-1
– Saw blade Ø210 x ø30 mm
– Number of saw teeth 48 Pieces
– Swiveling range -45 ° – +45 °
– Mitre cut -45 ° – +0 °
– Cutting width 90° x 90° 120 x 55 mm
– Cutting width 90° x 45° 80 x 55 mm
– Cutting width 45° x 90° 120 x 32 mm
– Cutting width 45° x 45° 80 x 32 mm

Logistic Data

– Product weight 7.1 kg
– Gross weight single packaging 8.8 kg
– Dimensions single packaging 465 x 324 x 295 mm
– Pieces per export carton 1 Pieces
– Gross weight export carton 8.8 kg
– Dimensions export carton 475 x 320 x 294 mm
– Container quantity (20″/40″/40″HC) 670 | 1380 | 1550
