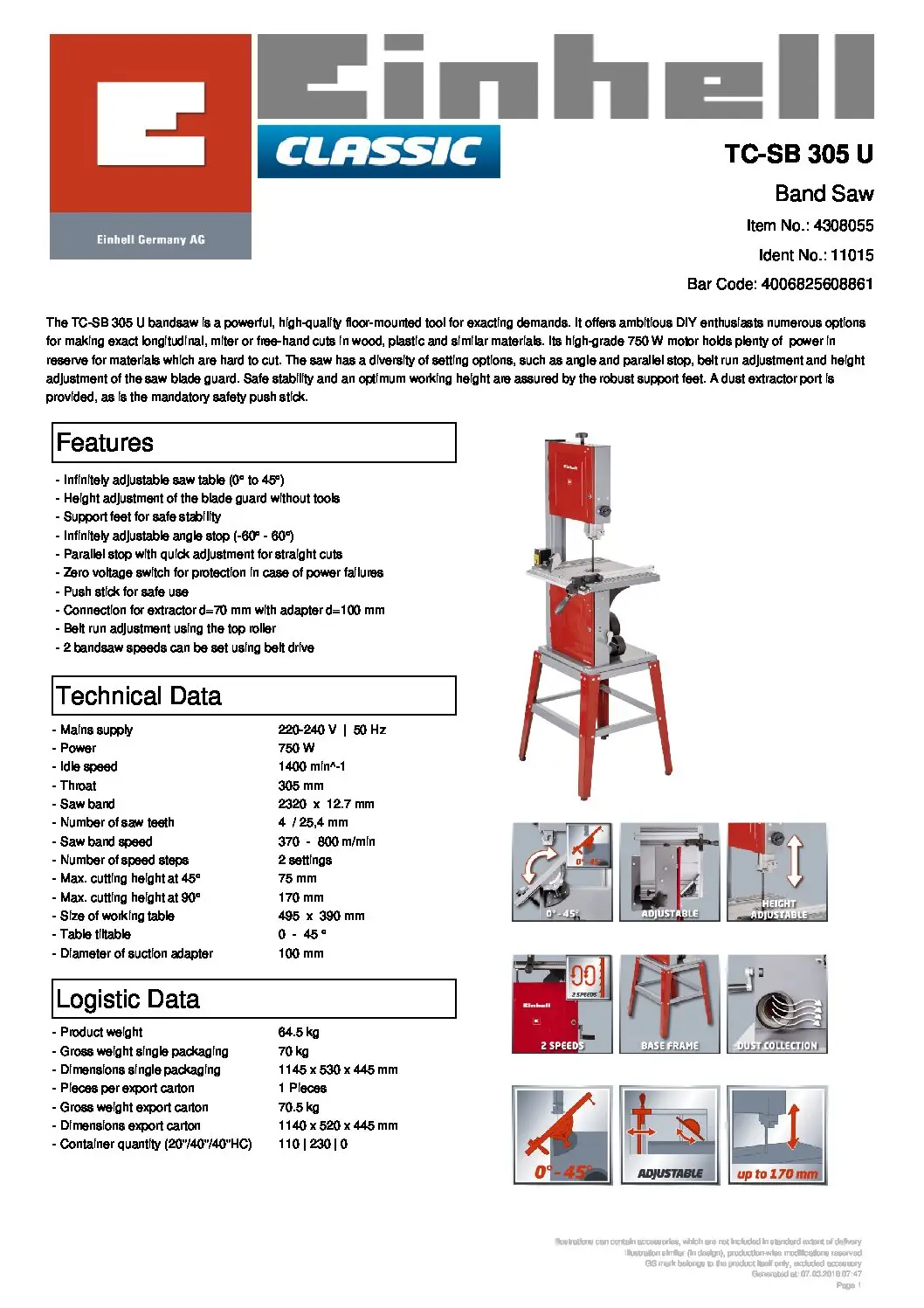

EINHELL – TC-SB 305 U, Band Saw (CORDED)

Features & Benefits

Infinitely adjustable saw table (0° to 45°)
Height adjustment of the blade guard without tools
Support feet for safe stability
Infinitely adjustable angle stop (-60° – 60°)
Parallel stop with quick adjustment for straight cuts
Zero voltage switch for protection in case of power failures
Push stick for safe use
Connection for extractor d=70 mm with adapter d=100 mm
Belt run adjustment using the top roller
2 bandsaw speeds can be set using belt drive

Technical Data

– Mains supply 220-240 V | 50 Hz
– Power 750 W
– Idle speed 1400 min^-1
– Throat 305 mm
– Saw band 2320 x 12.7 mm
– Number of saw teeth 4 / 25,4 mm
– Saw band speed 370 – 800 m/min
– Number of speed steps 2 settings
– Max. cutting height at 45° 75 mm
– Max. cutting height at 90° 170 mm
– Size of working table 495 x 390 mm
– Table tiltable 0 – 45 °
– Diameter of suction adapter 100 mm

Logistic Data

– Product weight 64.5 kg
– Gross weight single packaging 70 kg
– Dimensions single packaging 1145 x 530 x 445 mm
– Pieces per export carton 1 Pieces
– Gross weight export carton 70.5 kg
– Dimensions export carton 1140 x 520 x 445 mm
– Container quantity (20″/40″/40″HC) 110 | 230 | 0
