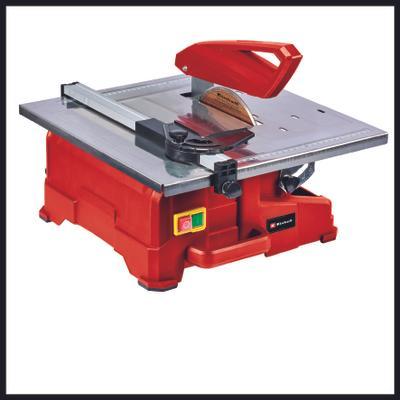

EINHELL – TC-TC 800, Tile Cutting Machine

Features & Benefits

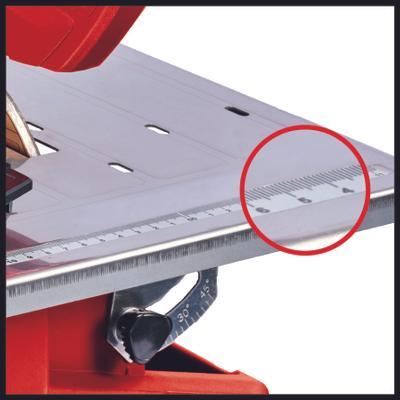

Tilting stainless steel table with angle scale (0 – 45°)
Integrated water container for saw blade water cooling
Non-slip feets for secure hold

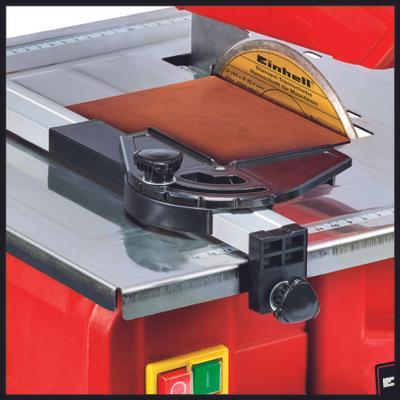

Parallel stop with angle scale for exact straight cuts
Adjustable (-45° – 45°) angle stop for mitre cuts

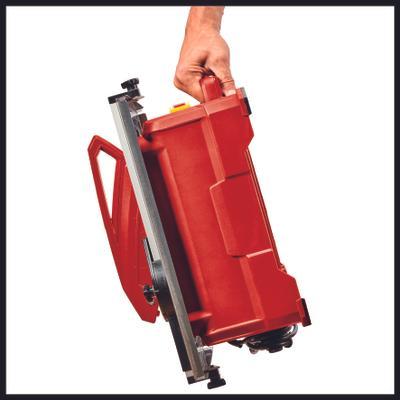

Carry handle for easy transport
A cutting wheel guard provides the necessary safety
Complete with diamond cutting wheel and a tool for changing
Cable winder for tidy storage after use

Technical Data

– Mains supply 220-240 V | 50 Hz
– Max. power (S2 | S2time) 800 W | 10 min
– Idle speed 2950 min^-1
– Max. cutting height at 45° 14 mm
– Max. cutting height at 90° 34 mm
– Diamond cutting disc Ø180 x ø25.4 mm

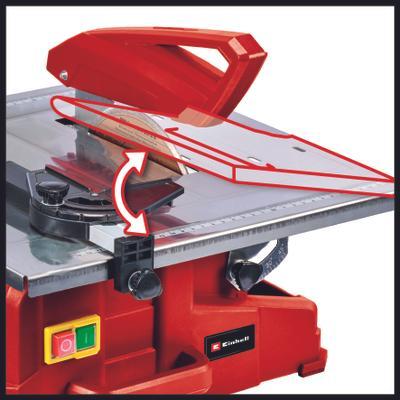

– Swiveling range of cutting disc 45 °
– IP code IPx4
– Size of working table 395 x 385 mm

Logistic Data

– Product weight 9.1 kg
– Gross weight single packaging 10.5 kg
– Dimensions single packaging 445 x 440 x 215 mm
– Pieces per export carton 1 Pieces
– Gross weight export carton 9.4 kg
– Dimensions export carton 455 x 425 x 205 mm
– Container quantity (20″/40″/40″HC) 650 | 1350 | 1620
