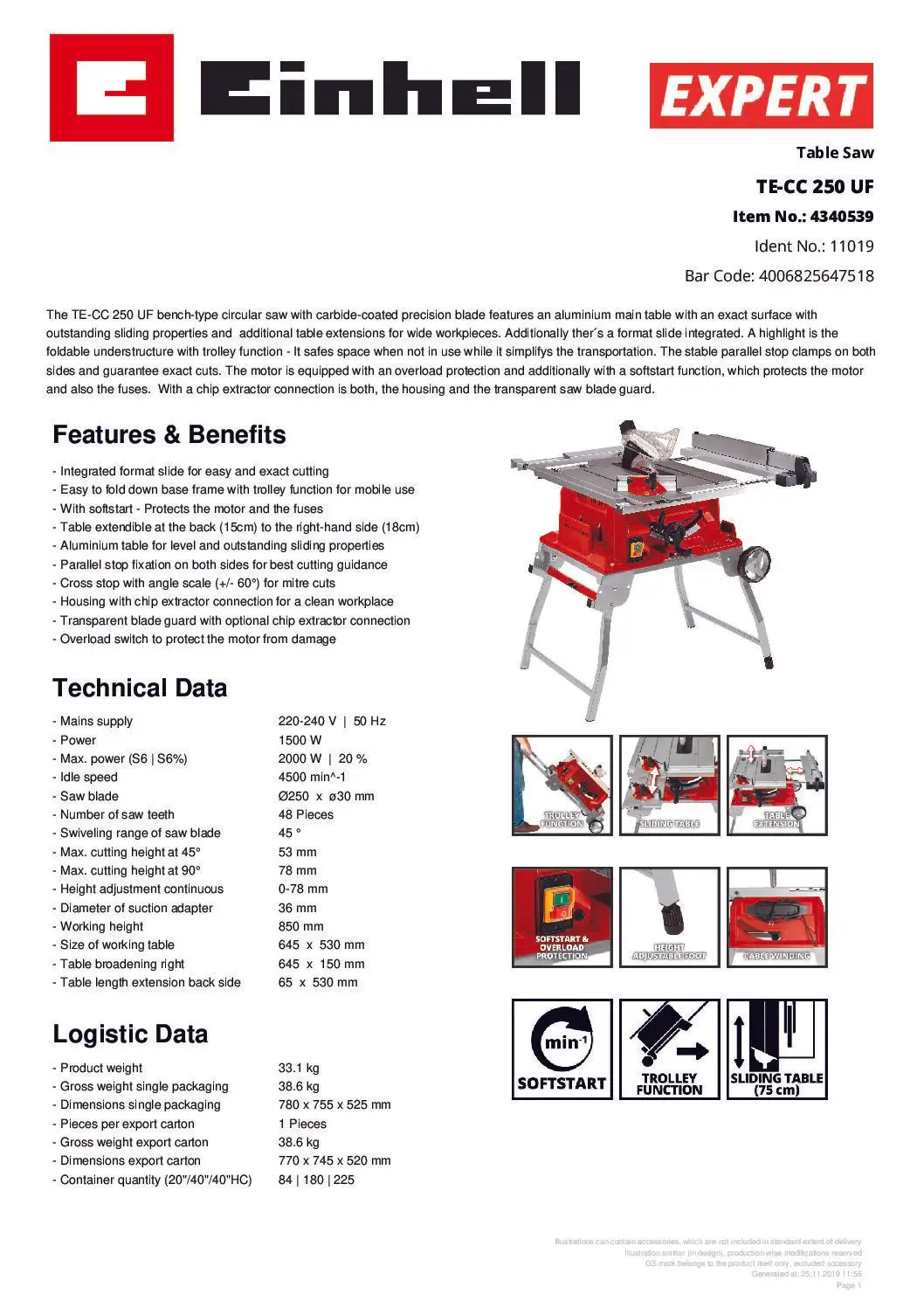

EINHELL – TE-CC 250 UF, Table Saw (CORDED)

Features & Benefits

Integrated format slide for easy and exact cutting

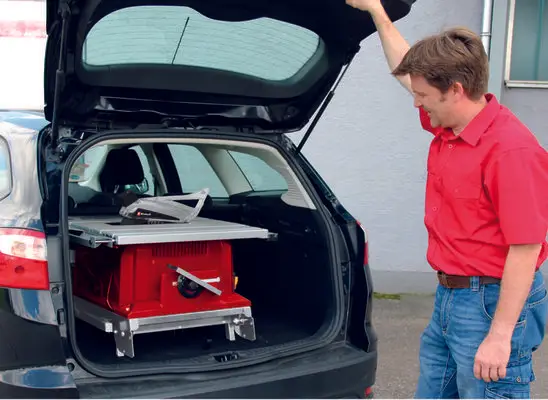

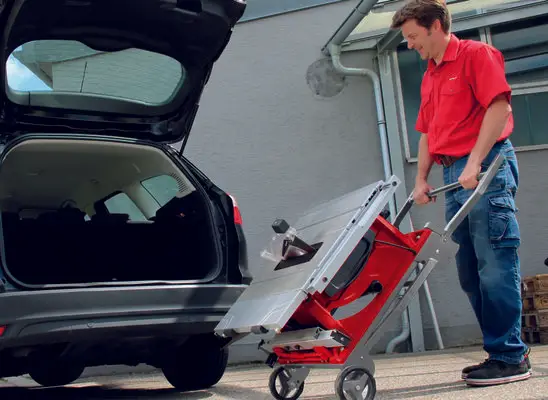

Easy to fold down base frame with trolley function for mobile use
With softstart – Protects the motor and the fuses
Table extendible at the back (15cm) to the right-hand side (18cm)
Aluminum table for level and outstanding sliding properties
Parallel stop fixation on both sides for best cutting guidance
Cross stop with angle scale (+/- 60°) for mitre cuts
Housing with chip extractor connection for a clean workplace
Transparent blade guard with optional chip extractor connection
Overload switch to protect the motor from damage

Technical Data

– Mains supply 220-240 V | 50 Hz
– Power 1500 W
– Max. power (S6 | S6%) 2000 W | 20 %
– Idle speed 4500 min^-1
– Saw blade Ø250 x ø30 mm
– Number of saw teeth 48 Pieces
– Swiveling range of saw blade 45 °
– Max. cutting height at 45° 53 mm
– Max. cutting height at 90° 78 mm
– Height adjustment continuous 0-78 mm
– Diameter of suction adapter 36 mm
– Working height 850 mm
– Size of working table 645 x 530 mm
– Table broadening right 645 x 150 mm
– Table length extension back side 65 x 530 mm

Logistic Data

– Product weight 33.1 kg
– Gross weight single packaging 38.6 kg
– Dimensions single packaging 780 x 755 x 525 mm
– Pieces per export carton 1 Pieces
– Gross weight export carton 38.6 kg
– Dimensions export carton 770 x 745 x 520 mm
– Container quantity (20″/40″/40″HC) 84 | 180 | 225
